Vacuum tube lifters are the ideal vacuum lift assist solution for box and carton handling. Whether you need to palletise, pack or stack boxes of any size the Palamatic NxG Vacuum Lifter can help.

A standard vacuum lifter can help an operator to stack cartons up to 2.5m (98″). The NxG Hi uses a telescopic control handle to allow an operator to lift from stacks of 2.75m.

Taped, strapped or open boxes present no problem to the Palamatic vacuum tube lifter.

If you need to lift several boxes together a Palamatic multi-vacuum pad tool does the job. Increased productivity and long-life durability is a reality with Palamatic low cost, low maintenance, high efficiency vacuum handling equipment.

SOLUTIONS INCLUDE:

• De-palletising and Palletising of Boxes and Cartons
• De-palletising and Palletising of Sacks and Boxes on the same line
• Side Gripping of Boxes and Cartons where Top Lifting is not possible
• Multiple box lifting

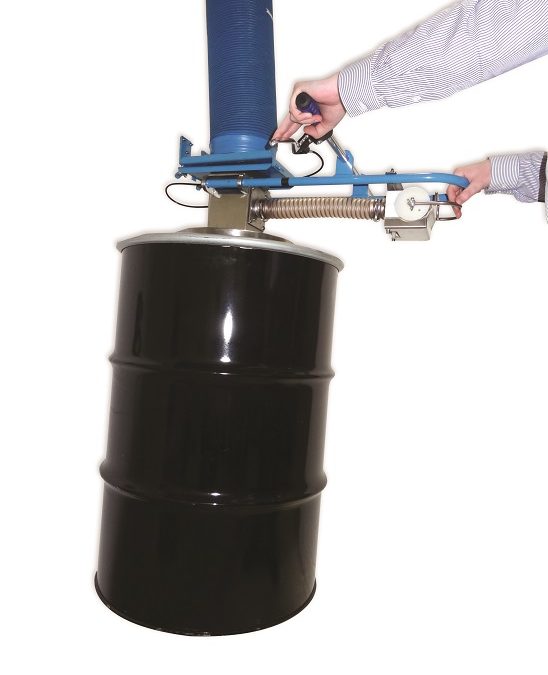

Drum lifters and barrel tippers from Palamatic provide a much needed lift assist to workers faced with manually manipulating heavy drums and barrels. By applying the principle of vacuum lifting to this manual handling problem the payload becomes almost weightless. A Palamatic vacuum lifter gives effortless control to a single worker to solve many barrel or drum manual handling problems. When product has to be poured into a process, minimal barrel spillage helps maintain good housekeeping.

Palamatic’s custom vacuum tooling designs allow the operation to be achieved easily using a drum tipping assembly which rotates about the drums centre of gravity – for a controlled drum pouring action. Rotation options include manually operated, hand-wheel and pneumatically powered. Palamatic offers a wide range of drum manipulating equipment for all industries – please visit the PalPharma website to see a wide variety of drum tipping options. Palamatic handling equipment enables effortless lifting of barrels from 20kg (44lb) to 300kg (660lb).

SOLUTIONS INCLUDE:

• Vacuum Tube Lifters for Top Drum Lifting
• Vacuum Lifting systems for Drum Lifting and Tipping
• Vacuum Lifters for Keg lifting using Hook
• Vacuum Lifter for Side Keg Lifting

Palamatic has provided many solutions to manual handling problems within the woodworking industry. The Palamatic vacuum tube lifting systems are safe, durable and effective tools to take the weight and stress out of manual handling tasks. Vacuum lifter can be used as a lift assist for workers performing repetitive tasks such as re-stacking and machine loading. These manual handling tasks can include board lifting, 180° board turning and 90° manual panel turning (ideal for vertical panel saw loading).

Common panel handling problems relate to the awkward nature of the payload – particularly so for CNC, Router, Edge Bander and Beam Saw loading operations. Palamatic’s board, panel, door and furniture lifting systems take the strain away from the operator and replace it with a user friendly vacuum powered lift assistor.

SOLUTIONS INCLUDE

• Flat Bed Machine Loading and horizontal board lifting

The Palamatic board lifting systems can be used whenever unprocessed or laminated wooden boards have to be manipulated horizontally. Typical jobs for this lifter are to grip and lift wooden boards from a stack for feeding into a horizontal saw or punch machine. With standard or custom designed tooling/ suction feet incorporating rubber seals thyat form to the shape of the product surface, the Palamatic S-LINE vacuum tube lifter systems meet the maximum standards of safety and efficiency in this demanding industry. The inbuilt safety valve mechanism in all Palamatic vacuum lifters mean that in the event of power failure the product will not be released until the operator decides.

• Horizontal to Vertical Rotation of Panels

When wooden boards/ panels have to be turned or rotated through 90 degrees within the work process a tilting device (angle adaptor) with operator handle is incoporated into the Palamatic vacuum lifter to allow the correct angle of movement to be achieved. Lifting  boards or panels from horizontal to vertical becomes an effortless task with the Palamatic board lifter and board turner. Stacking flat pack furniture into transport stillages is another use for this lifting device.

• 180 Degree Rotation of Products for Inspection and Gluing

One of the most difficult wood working processes involves rotating heavy boards and turning heavy panels by 180 degrees. These processes include situations where boards need to be worked on both sides – machining and laminating of boards. Palamatic have solved this lifting and handling problem with a 180 degree board turner. This turns a two or four man job into a one man job.

The smarter choice

Roll (reel) handling poses many ergonomic problems for process operatives. Roll lifting is necessary where they are removed from printing or converting machines to be stacked on pallets. At the other end of the production line this process is reversed. This process can also involve roll manipulation/rotation through 90 degrees. Reels can ‘telescope’ when picked from the core using mechanical grippers and, in many cases the reel has to be re-wound. Occasionally this can mean a totally wasted reel.

Damage to the edge of the reel is widespread when badly handled. As with all manual handling of heavy loads the operator cannot always protect the product if dropped or knocked against a work surface. The Palamatic reel manipulating systems solve both problems with specially designed suction pads to cope with varying diameters.

Grip is achieved across all the windings which, when lifted, prevents any spiralling occurring. Because the reel is now weightless the operator can exercise more care when manoeuvring it. With the addition of manual or pneumatically powered turning systems, the reel can safely and easily be turned through 90°.

SOLUTIONS INCLUDE:

• Reel and roll lifting
• Reel and roll side lifting and turning
• Core gripping
• Core gripping and turning

The Palamatic rubber bale vacuum lifter is the standard solution to the awkward task of rubber bale and block handling. A vacuum suction cup is specially designed to compensate for uneven surfaces by employing a flexible rubber suction seal. As natural rubber bales often require manipulation to release before lifting, the Palamatic vacuum lifter is robust in design and includes a ‘universal coupling’ to prevent damage to the main vacuum lift tube.

The thin plastic film that covers rubber bales is pierced using a set of perforation pins mounted in the suction head to effect a solid grip on the load. The Palamatic rubber bale handler offers the customer a user-friendly solution to the Manual Handling Regulations, whilst maintaining and often increasing productivity

Common practise is for operators to manually lift, inspect and stack pallets outdoors, exposed to harsh working conditions. This can be an area of high industrial injury, with back and hand injuries most common. Another problem is caused by the remnants of packaging clinging to the pallets.

Palamatic’s answer is the pallet inspection system. This consists of a specially designed fork attached to a vacuum lifting unit, easily controlled by a single operator. The pallet can be lifted quickly and safely from a stack, hovered at a workable height and rotated horizontally through 360° for inspection purposes. In this hands-free operation any waste can be removed and placed in a nearby skip. This laborious task has been made easy, with single operators now able to inspect up to 200, 45kg pallets in one hour.

SOLUTIONS INCLUDE:

• Pallet lifting using fork
• Top Lifting pallets
• Pallet inspection
